Chesa Stail'Alva, La Punt Chamues (GR) - Roof only - Efficiency: Depends on the number of cells (customized modules)
Solution Year
2023
Building Age
1600-1700
Listed Building
Yes
Conservation Area
Yes
Documenting Institution
LMNT Consultancy
Location
7522 La Punt-Chamues GR, Switzerland - 1700m
Building Type
Residential (rural)
Structure
Solid timber wall
The Building

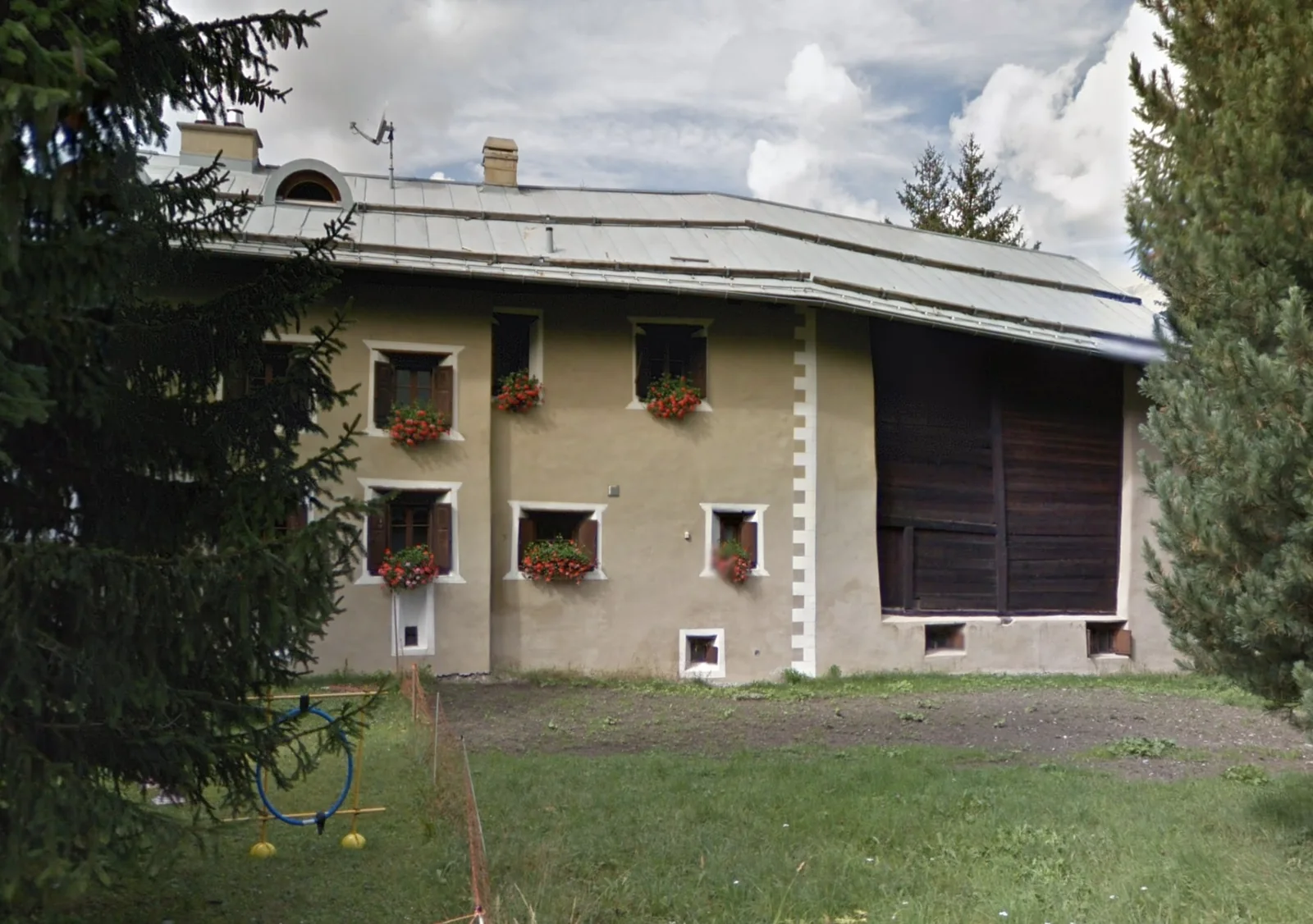

Building pre-intervention

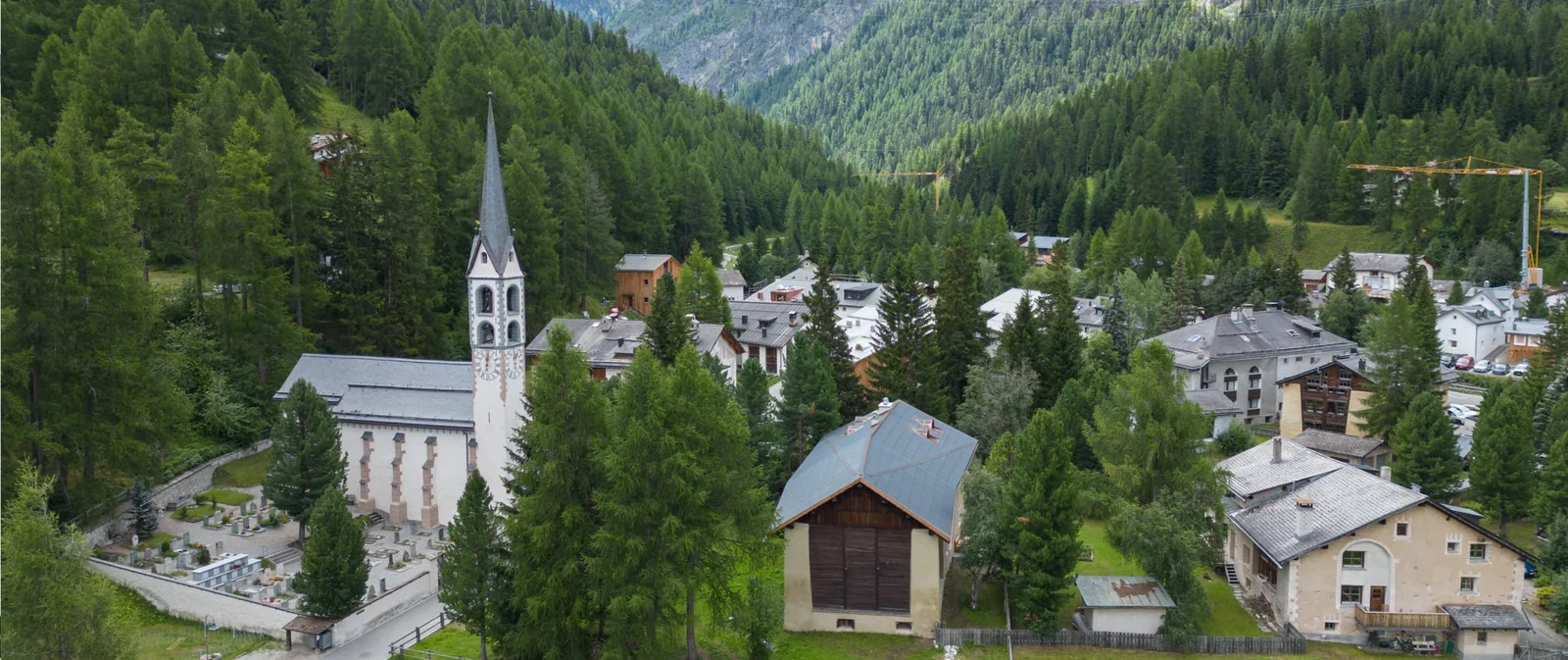

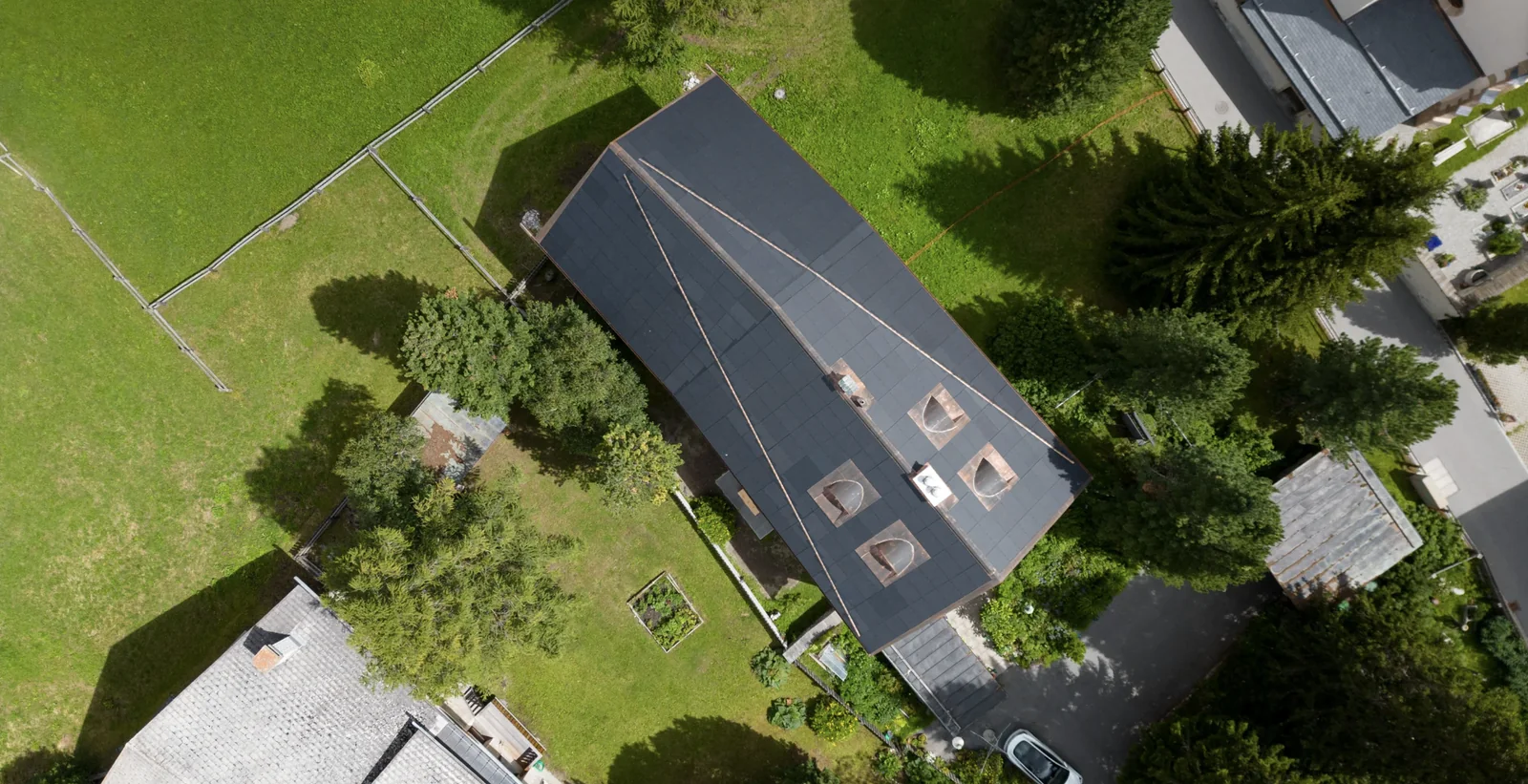

Building post-intervention
Chesa Stail'Alva, La Punt Chamues (GR)
In the picturesque alleyways of La Punt Chamues (GR) stands the majestic Chesa Stail'Alva, a historic masterpiece, a venerable testimony to the 17th century with a roof surface of exactly 400 m2.
The Solution
Solution pre-intervention

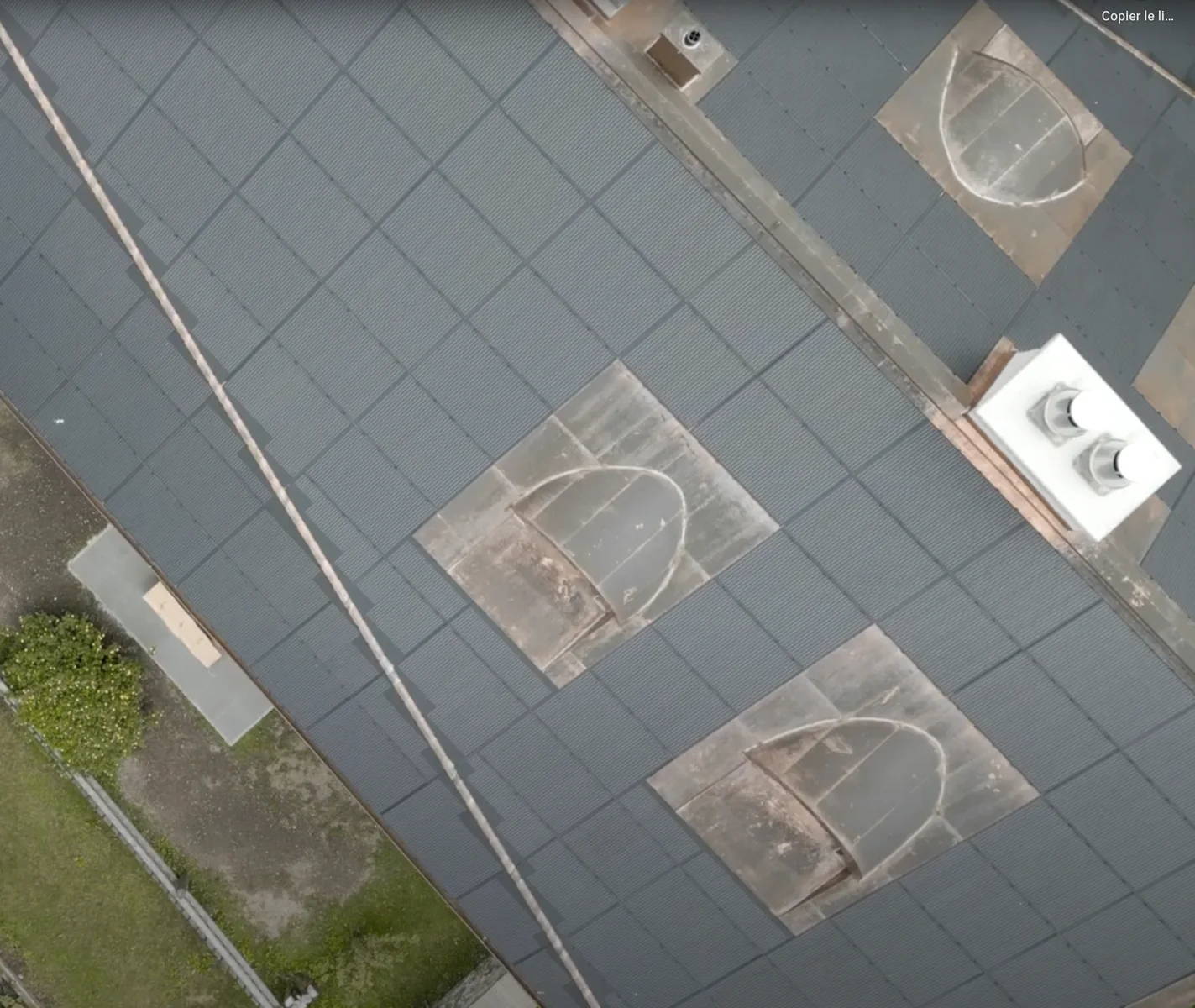

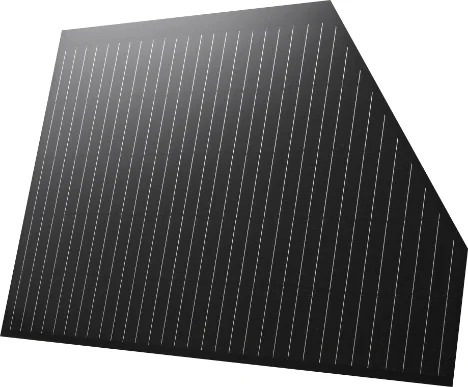

Solution post-intervention
What is the Solution?
Roof-integrated photovoltaic solar modules (the solar system acts as a roof covering). Black colour for maximum performance. Satin-finish glass for glare-free elegance and a harmonious interplay of light and shadow.
Why Does it work?
The best compromise between performance and aesthetics. Optimum architectural integration, respecting the architectural and heritage aspects of the building and area. Solution adapted to demanding climatic conditions (today's most demanding standards in terms of weather resistance).
PROS
- Maximum ratio of performance to aesthetics
- Meets the most demanding standards
- Adaptable to building and site requirements (colour, texture, shape)
CONS
- Lower energy performance than standard modules.
- Higher costs than a standard solution.
- More demanding to implement.
Type of installation
Replacement (building integrated - BIPV)
Part of the building
Roof only
Mounting system
information not available
Orientation
-90° (East)
90° (West)
Slope
~25°
Area (m²)
400 m²
Availability
Yes, available on the market
Manufacturer
3S Solar

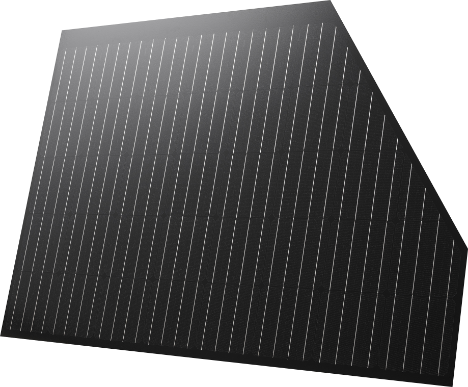

Model
CREA
PV module format
Customized modules
PV module format max
1650 x 1190 mm
PV module type
Glass-Backsheet (opaque)
PV cells technology
c-silicon
PV module efficiency
Depends on the number of cells (customized modules)
Total PV power
54
Surface PV power (W/m²)
#VALUE!
PV energy production
abt. 40'000 kWh/yr
Weight
information not available
Dummy modules used?
Yes
Frame
No
Overlapping
No
Colorization
No (black modules)
Colorization technology
No colorization
Glass structure
Mat/Satin-finished
Technical drawings
Additional documentation
Before retrofit
After retrofit
Assessment
PV installation type
Replacement (building integrated - BIPV)
PV position
Roof only
Coloured PV
No
Module efficiency
15% < Efficiency <= 20%
Building alteration
Yes, the building envelope was modified in a non reversible way
Investment cost
Medium Low
Circular approach
No
Circular approach (Additional info)
No strategies are identified
Location
7522 La Punt-Chamues GR, Switzerland - 1700m
Climatic Zone:ET
