Gasthaus Siehen in Eggiwil - Roof only - Efficiency: 20% - CALECHE Solutions

The Building

Building post-intervention

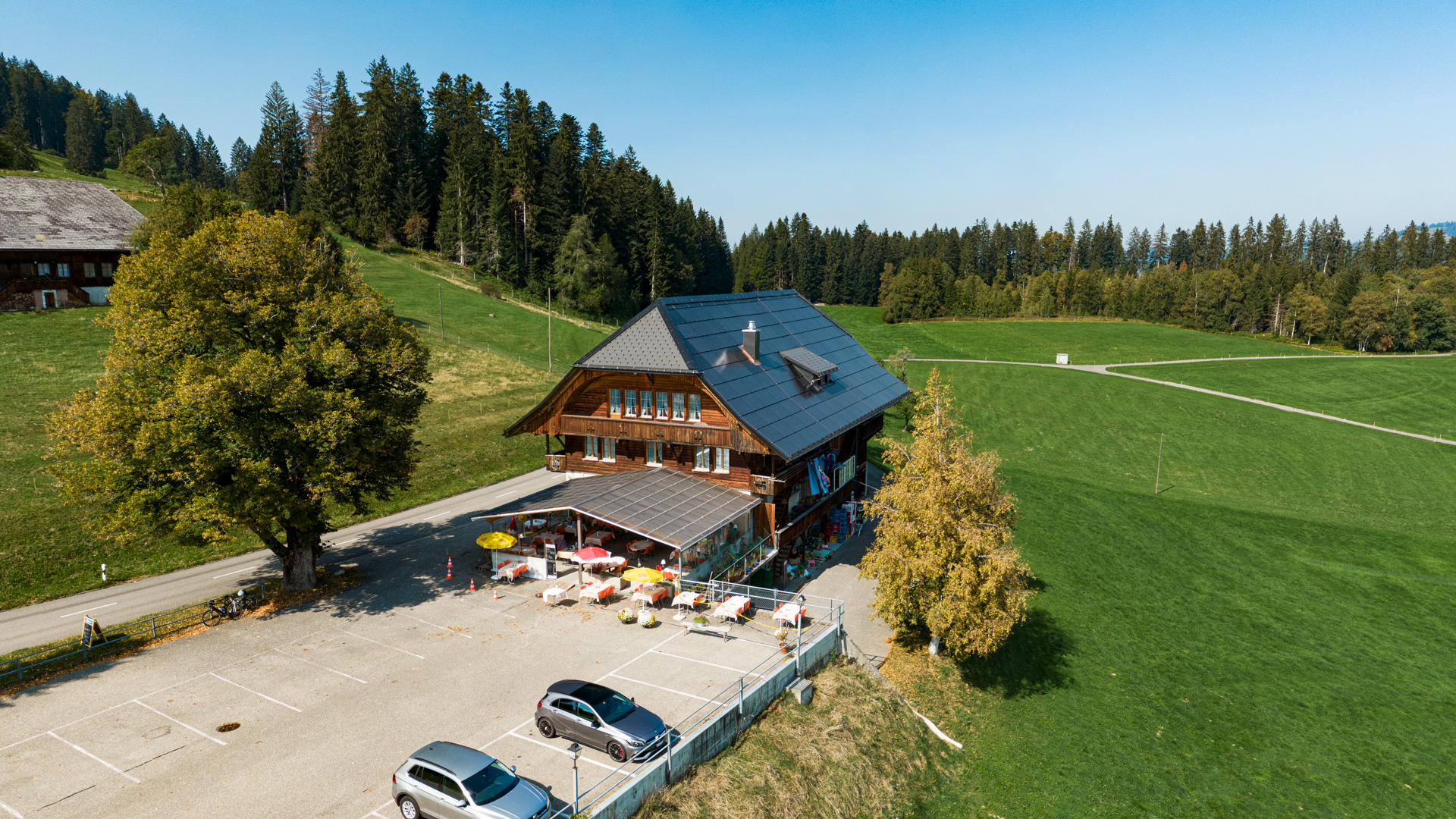

Building post-intervention: Gasthaus Eggiwil_Post_1_(C)Megasol.jpg

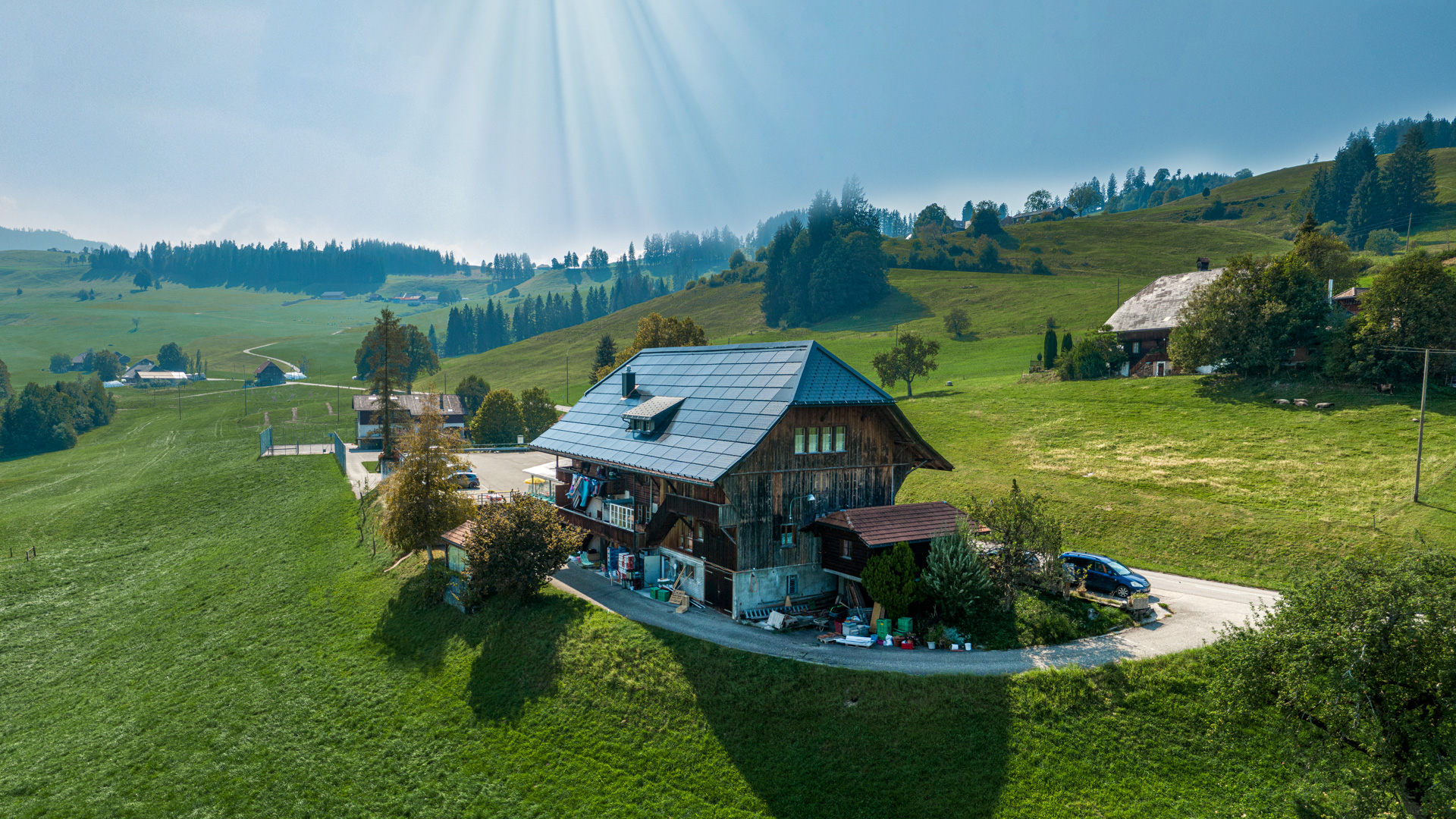

Building post-intervention: Gasthaus Eggiwil_Post_2_(C)Megasol.jpg

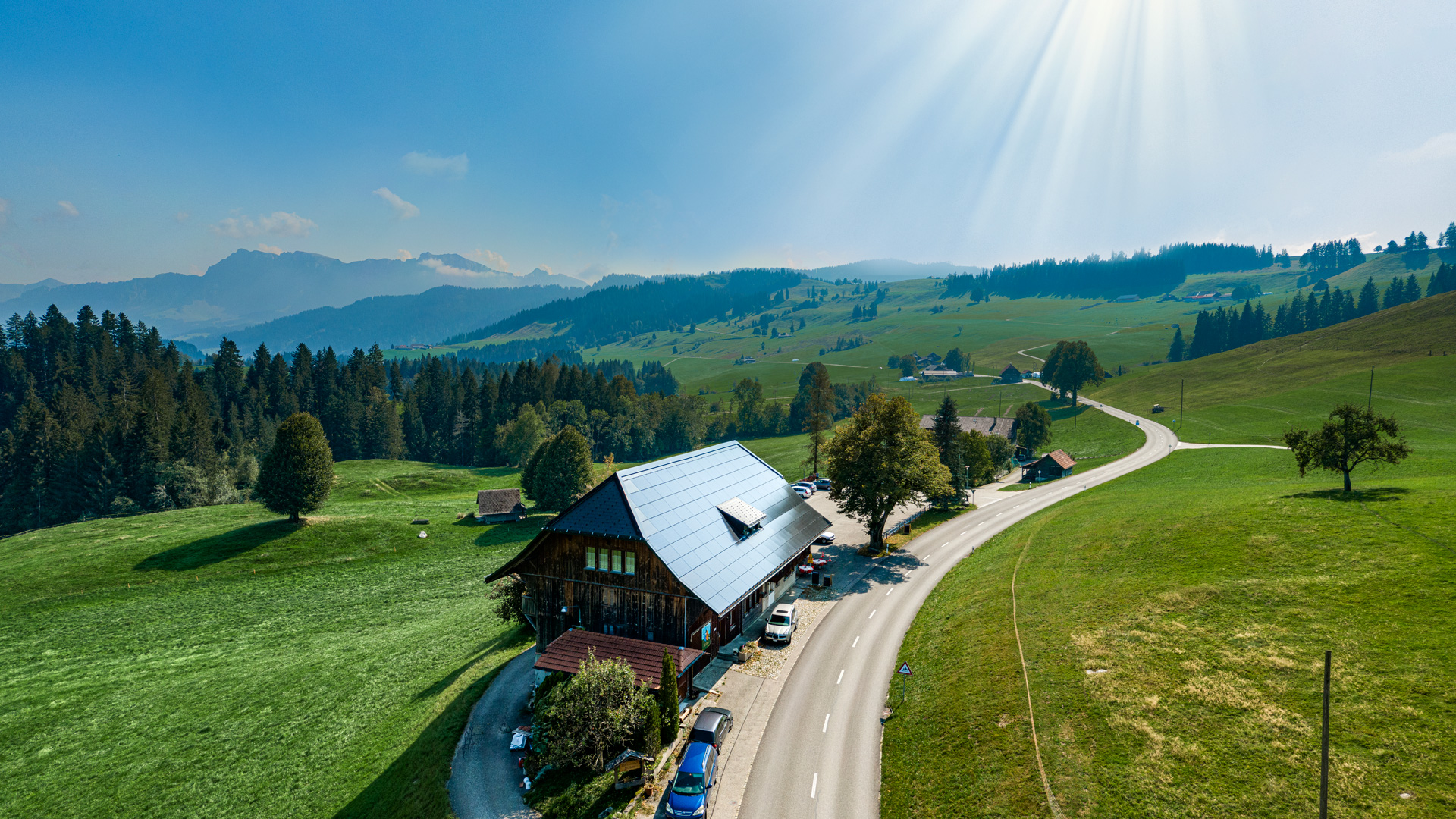

Building post-intervention: Gasthaus Eggiwil_Post_3_(C)Megasol.jpg

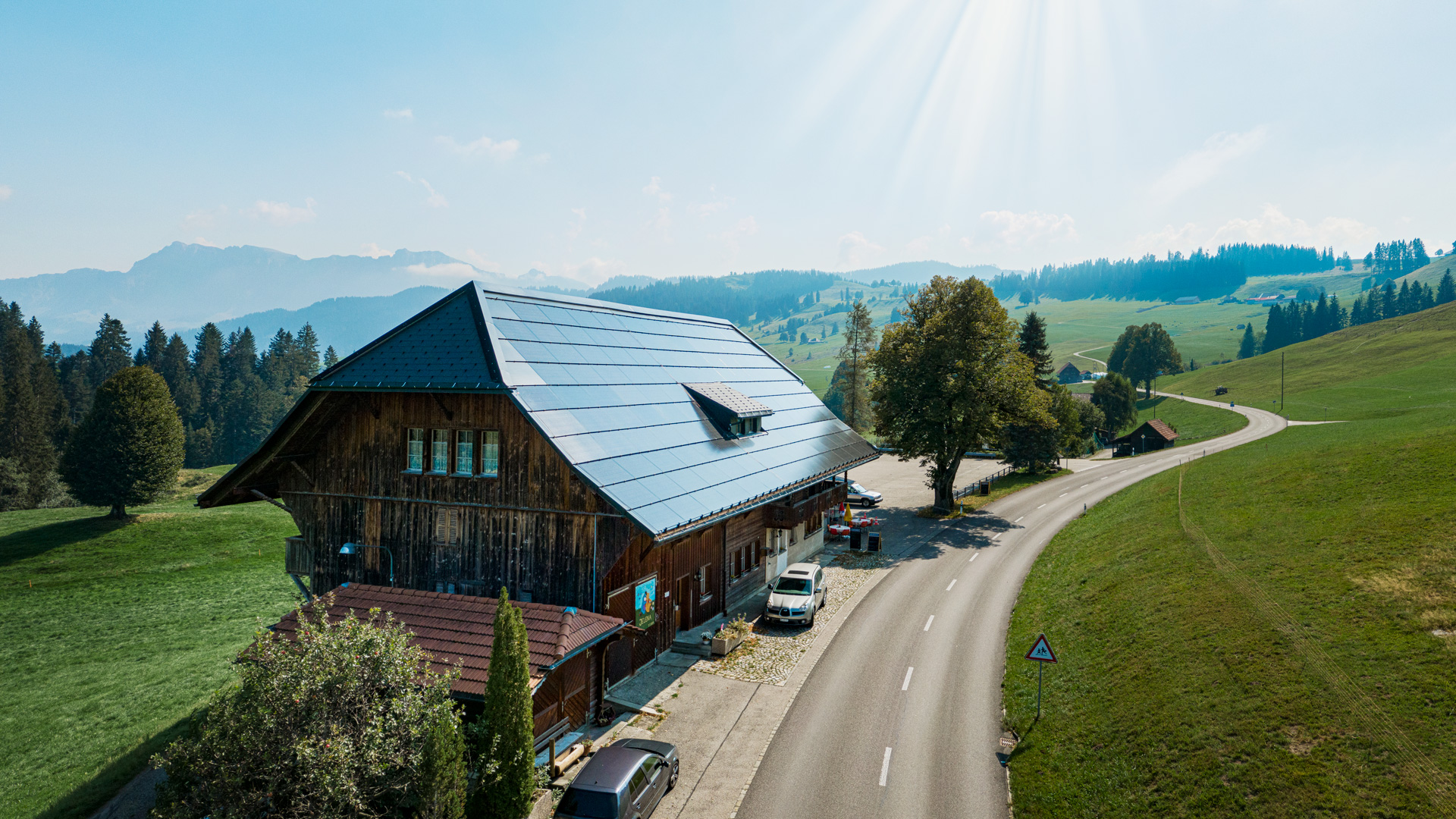

Building post-intervention: Gasthaus Eggiwil_Post_4_(C)Megasol.jpg

Gasthaus Siehen in Eggiwil

The Gasthaus Siehen is idyllically nestled in the Eggiwil countryside. It was important to the client to have an elegant, full-surface covering of the building at an optimal price-performance ratio.

The Solution

What is the Solution?

The LEVEL roof-integrated system consists of glass-glass solar modules that are overlapped – just like roofing shingles. Even complex surfaces can be covered, which makes it the perfect solution for entire and aesthetic roof integrations.

Why Does it work?

Aesthetically attractive integration solution for applications with standard-size, black modules. Offers an excellent balance between aesthetics, cost and performance.

PROS

Integration quality
Adaptability to all surfaces
Good finish with dummy modules
Good aesthetic-cost-performance ratio

CONS

Black modules not always suited to demanding heritage constraints.

Type of installation

Replacement (building integrated - BIPV)

Part of the building

Roof only

Mounting system

LEVEL

Orientation

-89° (E) 91° (W)

Slope

40°

Area (m²)

445 m²

Availability

Yes, available on the market

Manufacturer

Megasol

Model

LEVEL

PV module format

Standard modules (rectangular with standard size)

PV module format max

1695 x 1100 mm

PV module type

Glass-Glass

PV cells technology

c-silicon

PV module efficiency

0.19699999999999998

Total PV power

80 kW

Surface PV power (W/m²)

179,8 W/m2

PV energy production

abt. 68'000 kWh/yr

Weight

information not available

Dummy modules used?

Yes

Frame

No

Overlapping

Yes

Colorization

No (black modules)

Colorization technology

No colorization

Glass structure

Shiny (with antireflection)

Before retrofit

After retrofit

Assessment

PV installation type

Replacement (building integrated - BIPV)

PV position

Roof only

Coloured PV

No

Module efficiency

15% < Efficiency <= 20%

Building alteration

Yes, the building envelope was modified in a non reversible way

Investment cost

Medium High

Circular approach

No

Location

3537 Eggiwil BE, Switzerland - 976m

Climatic Zone:Cfb
