Bâtiment haussmannien à Paris - Facades only - Efficiency: 20% - CALECHE Solutions

The Building

Bâtiment haussmannien à Paris

Historic Hausmann-style building in Paris, in a district whose Hausmannian unity is to be preserved.

The Solution

Solution pre-intervention

Solution pre-intervention: BatHausmannien Paris_Pre_1_(C)Kromatix.jpeg

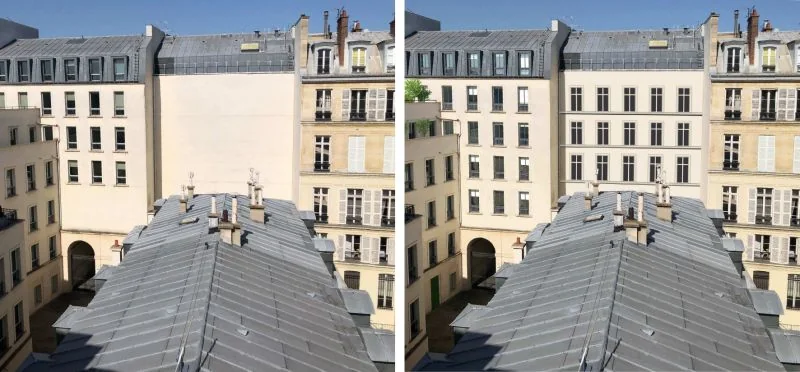

Solution post-intervention

Solution post-intervention: BatHausmannien Paris_Post_1_(C)Kromatix.jpeg

What is the Solution?

Thanks to Kromatix coloured solar glass technology, the panels could be integrated into the façade in a trompe-l'oeil effect (the windows are solar panels), while respecting the Hausmanian unity of the neighbourhood.

Why Does it work?

This solution makes it possible to generate clean energy while preserving the aesthetics of historic buildings, by integrating perfectly into the existing urban fabric.

PROS

The photovoltaic modules have been entirely designed to meet a very specific need and to fit into a particular context.

CONS

Ratio complexity/cost/energy

Type of installation

Replacement (building integrated - BIPV)

Part of the building

Facades only

Mounting system

information not available

Orientation

information not available

Slope

90°

Area (m²)

24 m²

Availability

Yes, available on the market

Manufacturer

Kromatix

Model

information not available

PV module format

Customized modules

PV module format max

information not available

PV module type

Glass-Glass

PV cells technology

c-silicon

PV module efficiency

0.2

Total PV power

information not available

Surface PV power (W/m²)

information not available

PV energy production

abt. 5'500 kWh/yr

Weight

information not available

Dummy modules used?

information not available

Frame

No

Overlapping

No

Colorization

Yes (coloured modules)

Colorization technology

Multi-layered coating deposition

Glass structure

Mat/Satin-finished

Before retrofit

After retrofit

Assessment

PV installation type

Replacement (building integrated - BIPV)

PV position

Facades only

Coloured PV

Yes

Module efficiency

15% < Efficiency <= 20%

Building alteration

Yes but the process was done reversibly ensuring that the original components of the building could be restored if needed

Investment cost

High

Circular approach

No

Location

75001 Paris, France - 35m

Climatic Zone:Cfb
