Single family House

The Building

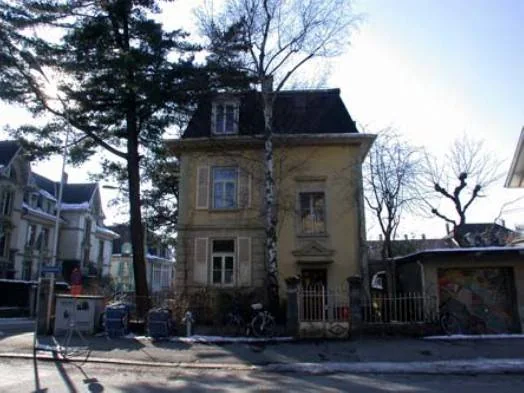

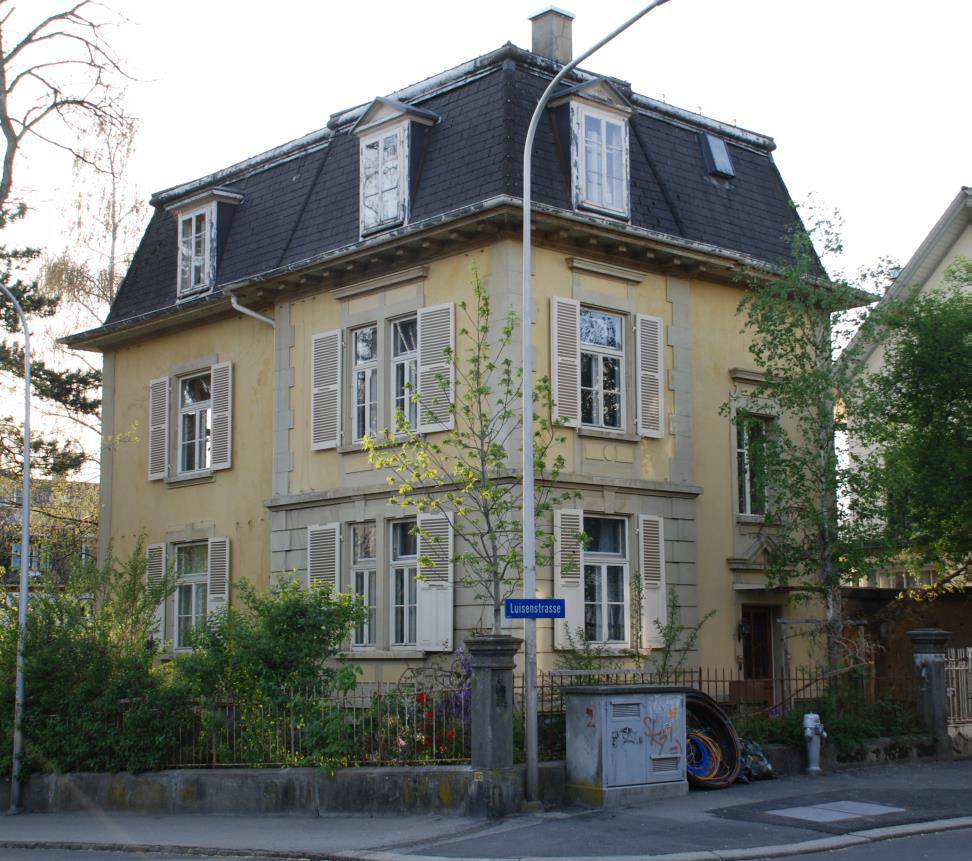

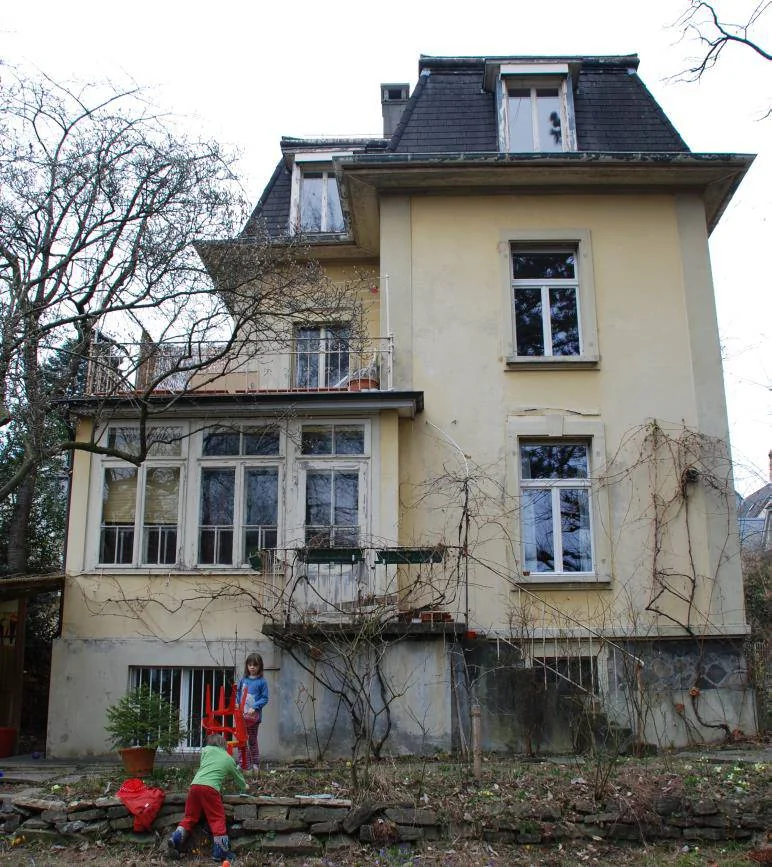

Building pre-intervention

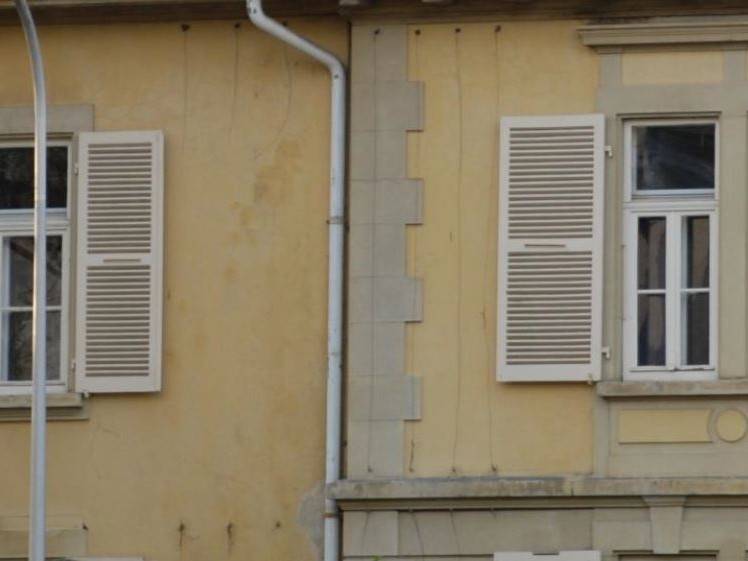

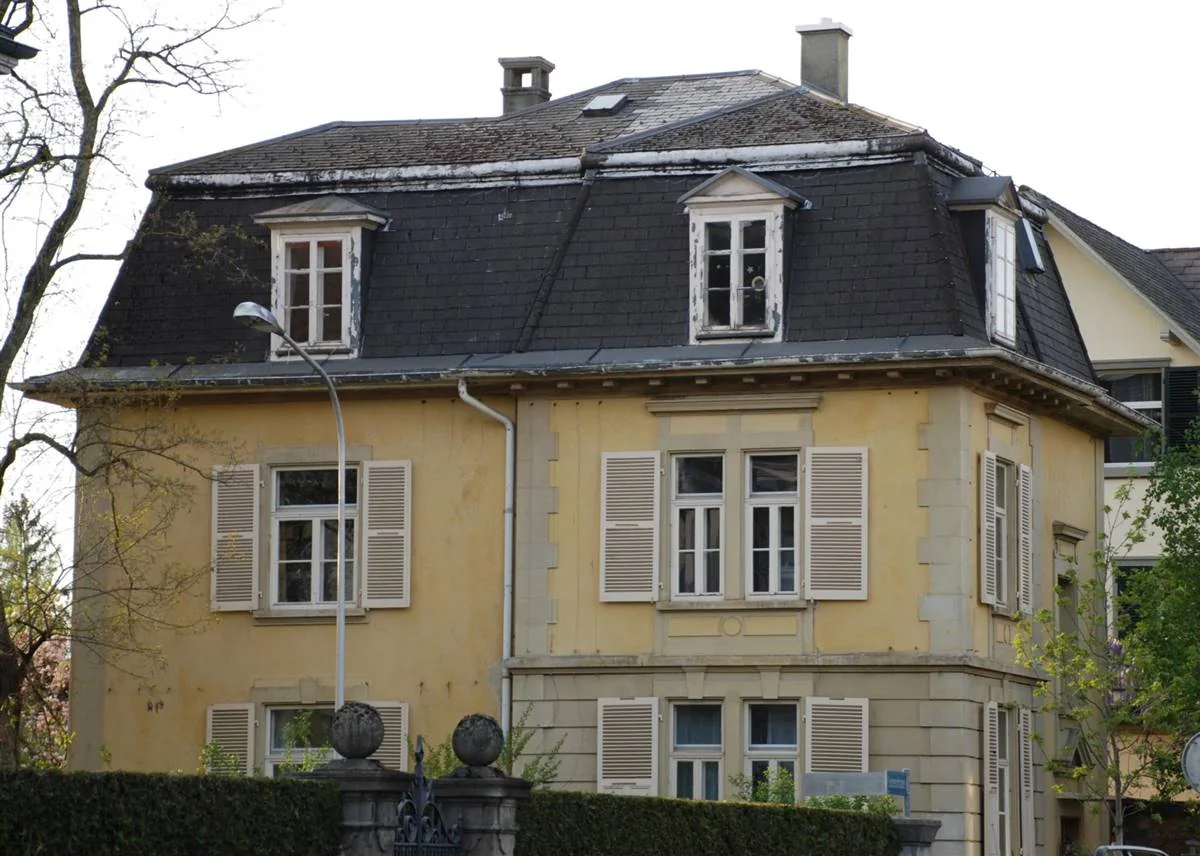

Building pre-intervention: old wall.jpeg

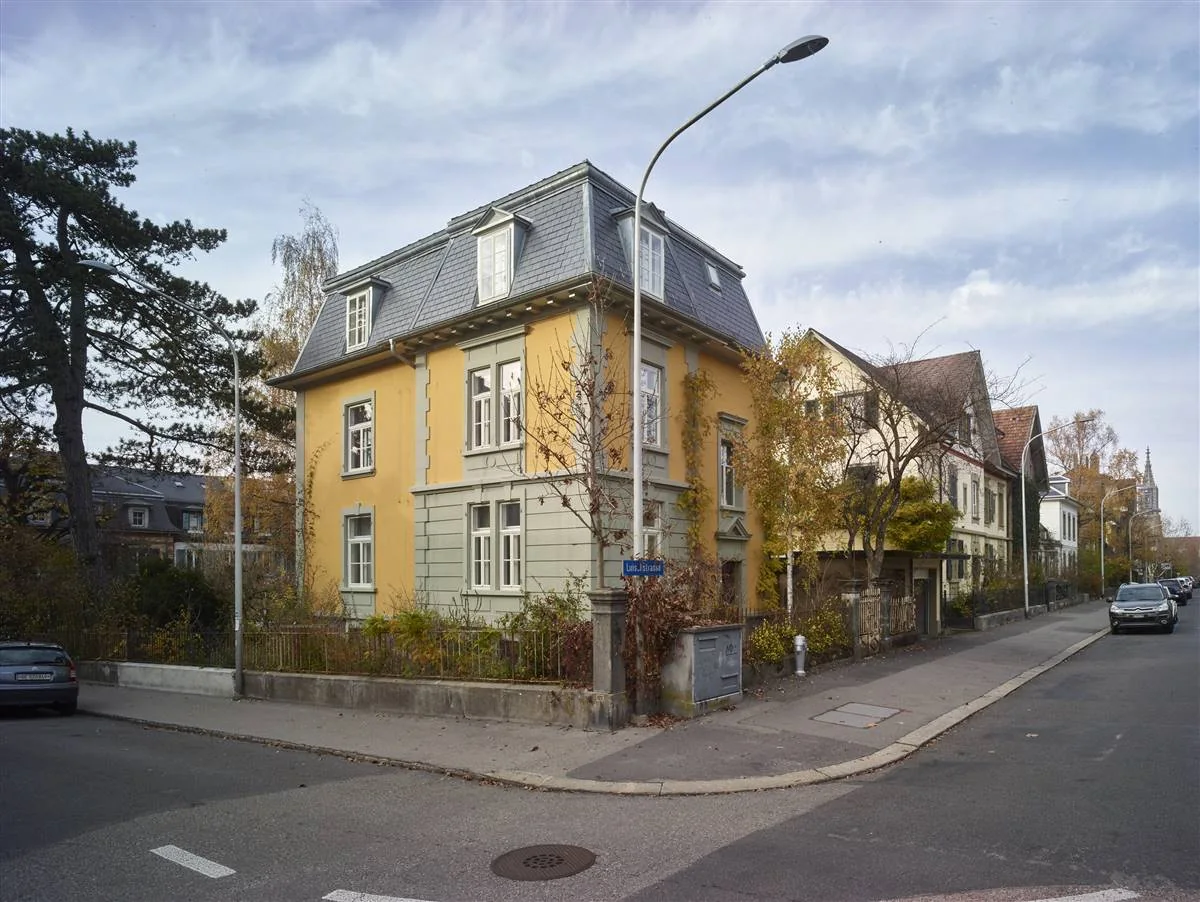

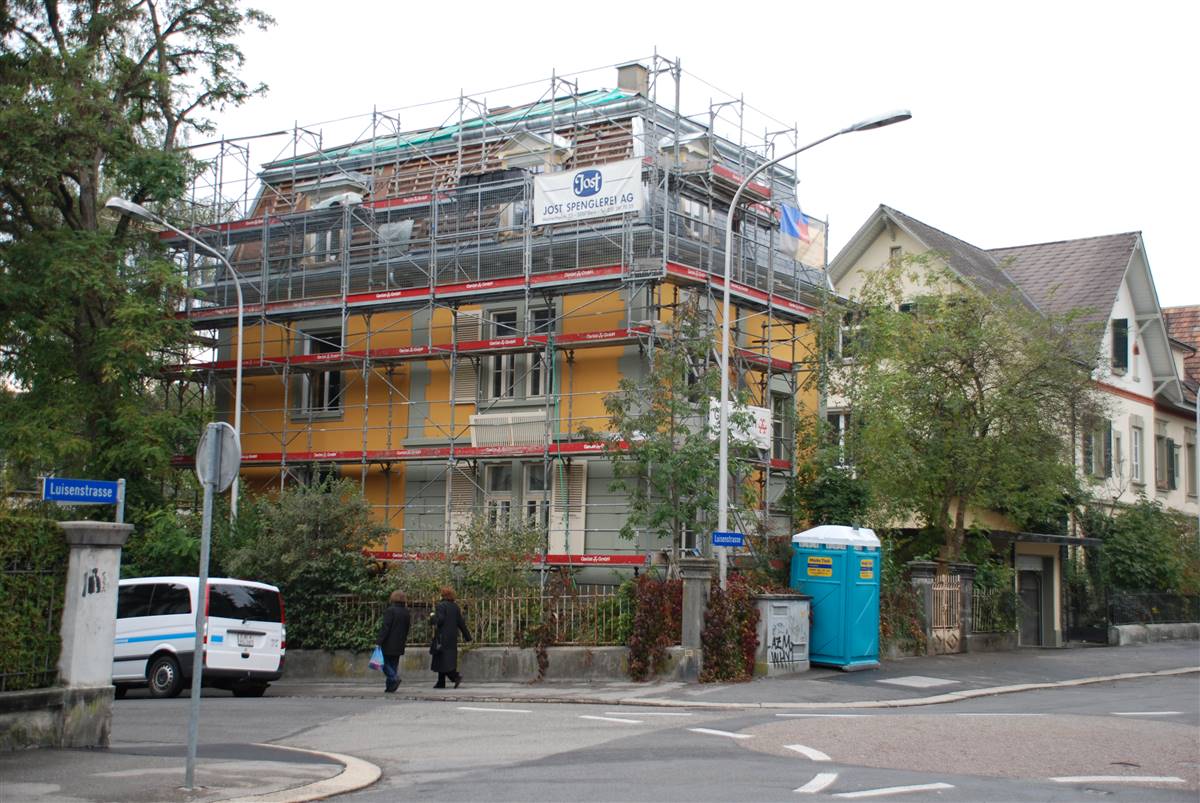

Building post-intervention

The building is a detached single-family house, a two-floors neo baroque construction with a mansard rooftop and is dated 1898. The general situation of degradation and the need to minimize energy demand collide with the important aspect of historic buildings preservation. As usual at road forks and corner houses in the Kirchenfeld district, according to the Kirchenfeld-Brunnadern building inventory, the house was designed with special care: the south-east corner of the house is characterized by a corner risalite, which is covered with the mansard roof. The house is listed in the cantonal building inventory and classified as worthy of protection (highest protection level). For this reason, any changes must obtain the approval of the Department of Historic Monuments.

More Details

The Solution

Solution post-intervention

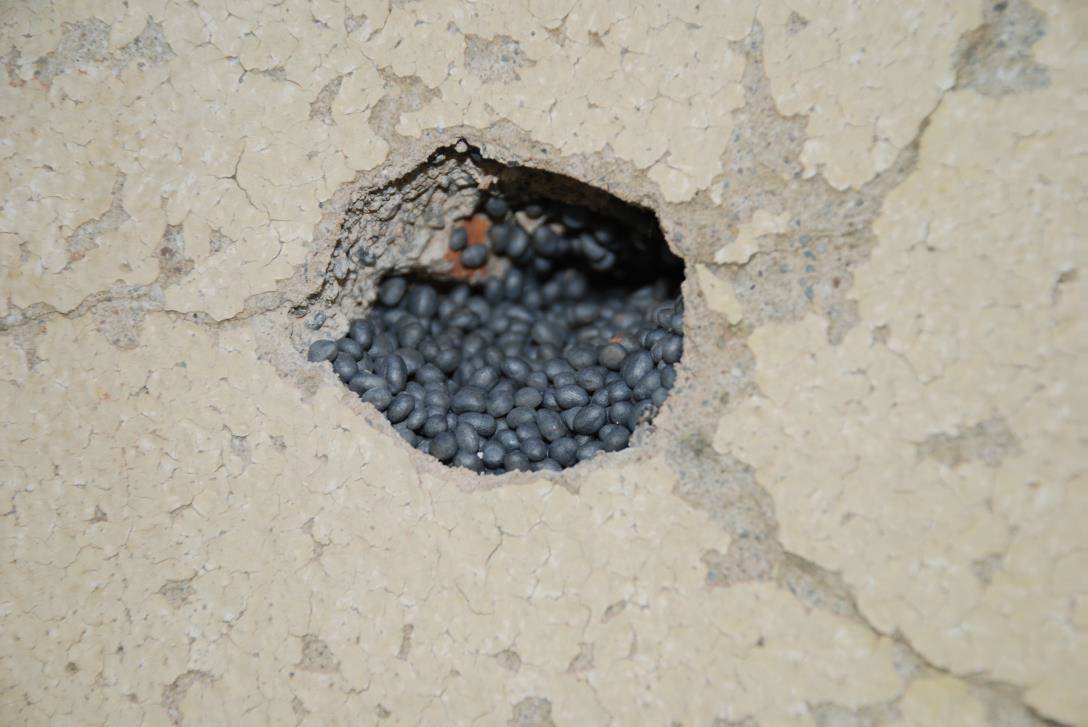

Solution post-intervention: iniezione isofloc 2.jpg

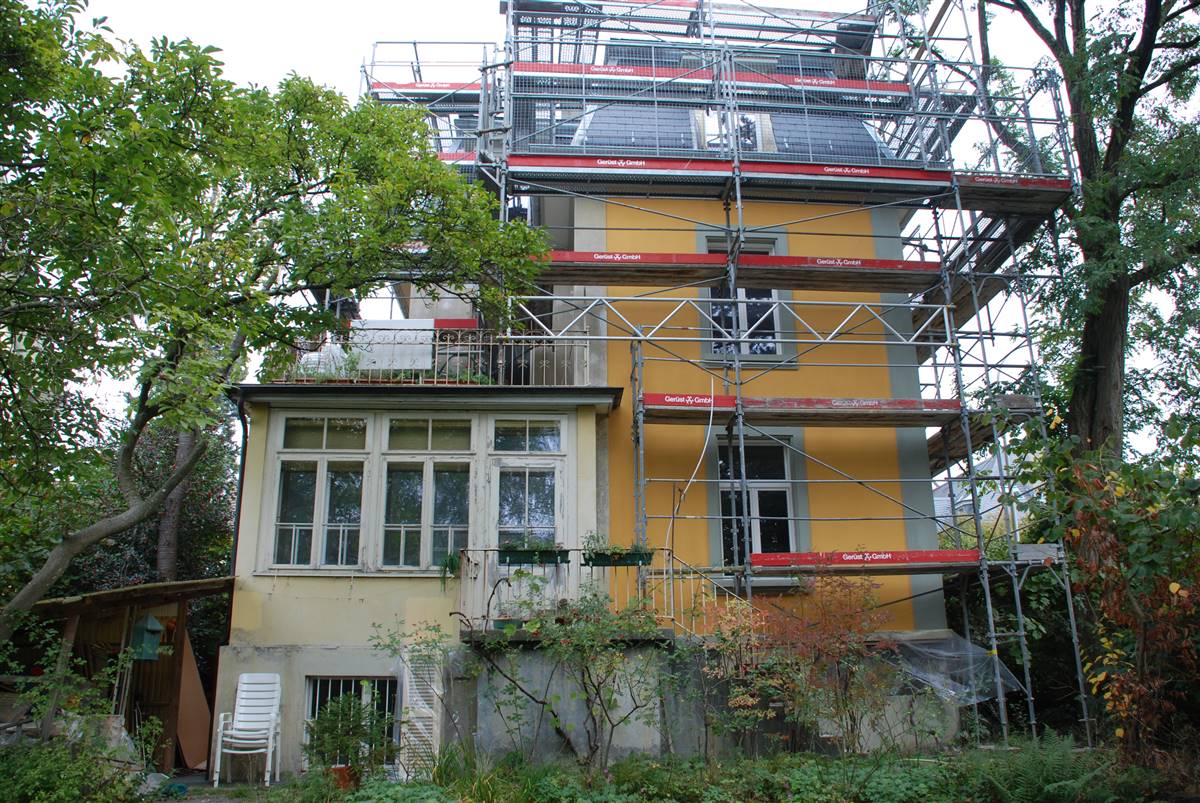

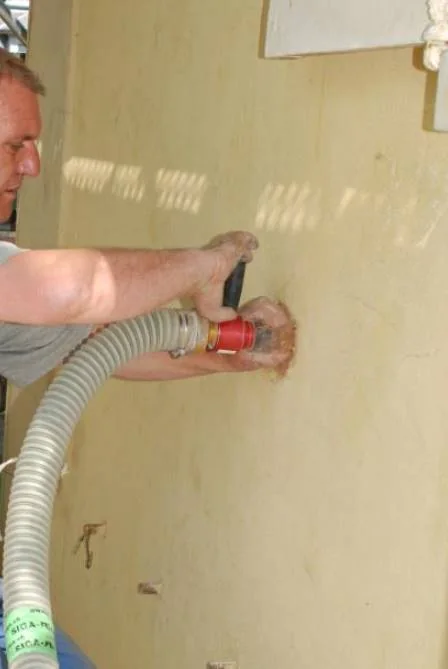

Solution post-intervention: intervento muro.jpg

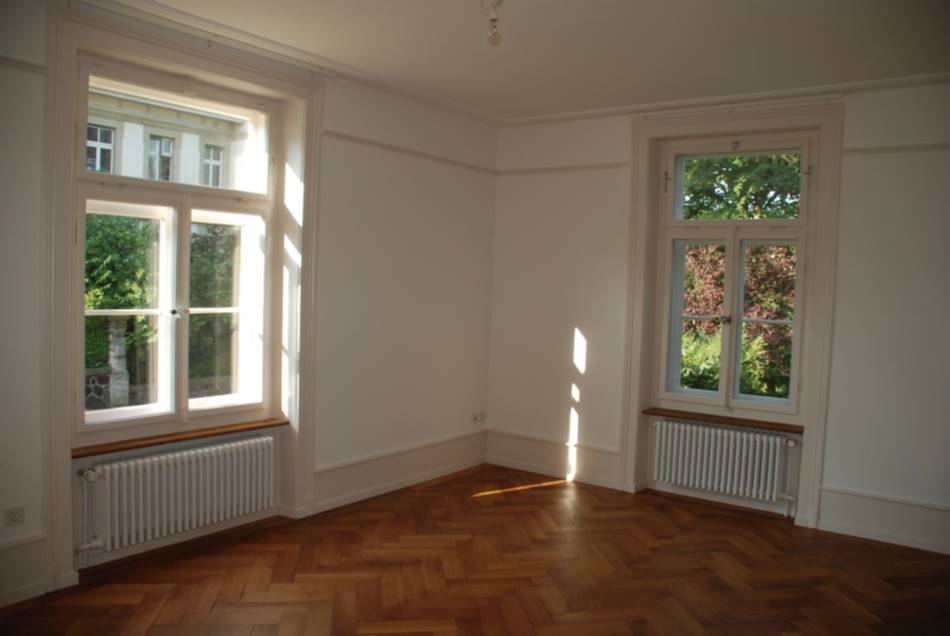

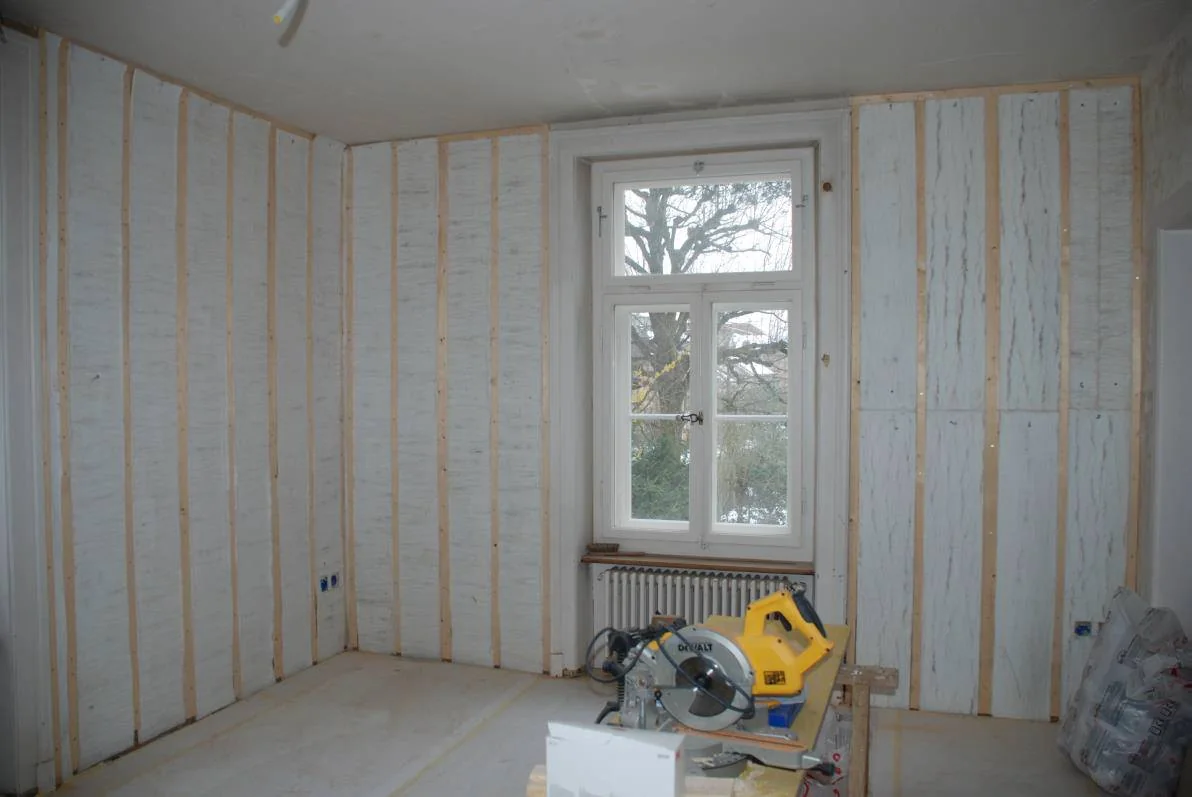

Solution post-intervention: Wall internal intervantion 1.jpg

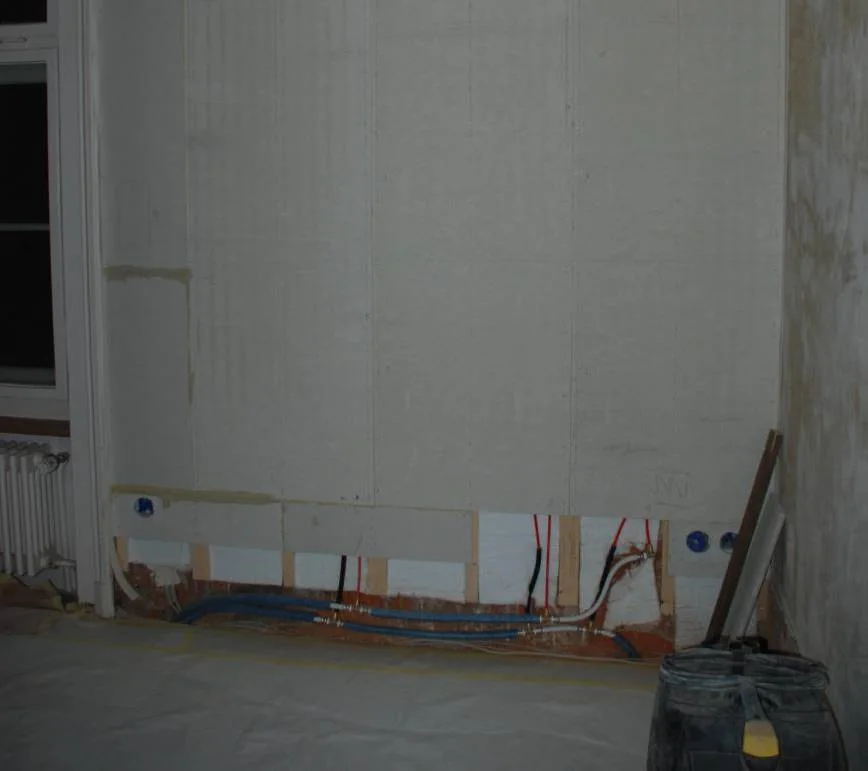

Solution post-intervention: Wall internal intervantion 2_1.jpg

What is the Solution?

The external wall was insulated with a double-shell blowing system with Isofloc H2Wall. This is the best possible insulation for an external wall, as reported in the cantonal buildings inventory. This was a premiere in Bern. In addition, it has been included on the inside a wall heating with 1cm aerogel insulation (corresponds to 3cm of conventional isolation). The intervention maintains the original aesthetics of the wall and the increase in wall thickness is minimal. This way, the interior space of the building remains practically unchanged.

Why Does it work?

The intervention maintains the original aesthetics of the wall and the increase in wall thickness is minimal. This way, the interior space of the building remains practically unchanged. Many houses built between 1900 and 1970 have cavity walls. The outer shell, usually a brick facade or plastered masonry, provides protection against the weather. Behind this there is a 40-100 mm cavity and the internal shell is usually the load bearing wall. A lot of valuable heat energy is lost via an un-insulated external wall.

PROS

The intervention is aesthetically minimal and at the same time thermal comfort highly increases, thanks to the wall radiators that guarantee a good heat diffusion.
It is water-repellent and completely recyclable.
The vapor-permeable granulate is resistant to aging and rot.
Less expensive because the insulation is blowed in the cavity core of existing walls using small injection openings with minimal cross-section intervention with complete cavity filling.
Settlement-proof and can be processed without joints.

CONS

Focusing on costs, aerogel-based layers and specialist cavity-injection systems typically carry higher upfront material and installation prices—industry and DOE analyses note aerogel can cost ~2–5× more than conventional insulations—so payback and budget sensitivity should be assessed carefully. In addition, multiple EPDs indicate that aerogel blankets/renders have a comparatively higher embodied-impact per functional unit than common alternatives (e.g., cellulose or mineral wool), raising the intervention’s environmental cost unless minimized in thickness and balanced by operational savings.

Insulation material

Isofloc H2Wall

Insulation thickness

Thermal conductivity

0.033

Health issue

information not available

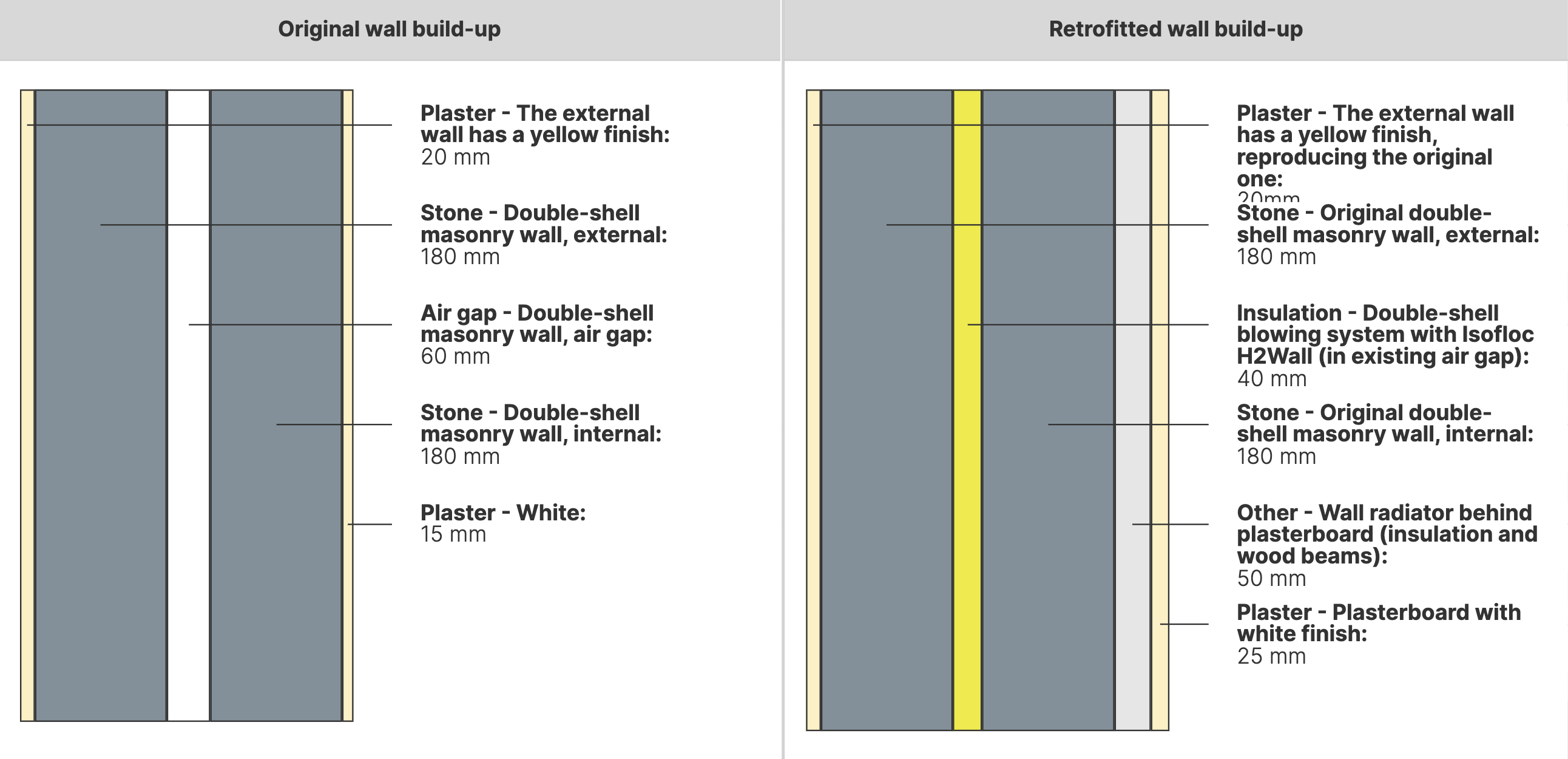

Technical drawings


Additional documentation

Single family house in bern - double shell masonry wall.pdf

Installation Method

For retrofitting of the double-shell wall construction, the EPS granulate is blown into the previously free air space through blow-in holes in the front wall shell and the openings are closed again with plaster or mortar of the same colour.

Moisture Management and Technical Compatibility

information not available

Airtightness

information not available

Before retrofit

After retrofit

Before retrofit

Wall thickness

455

After retrofit

Wall thickness

495

Before retrofit

Wall build-up

Plaster [20], Stone_double_shell_wall [180], Air_gap [40], Stone_double_shell_wall [180], Plaster [15]

After retrofit

Wall build-up

Plaster [20mm], Stone - double-shell masonry wall [180mm], Insulation - Isofloc H2Wall [40mm], Stone - double-shell masonry wall [180mm], Wall radiator [50mm], Plaster [25mm]

Before retrofit

U-value

0.68

After retrofit

U-value

0.44
